Always aim to quality first, until we’ve received low rate of maintaining.
Over the 20years, we have established nice business relationship with clients all over the world, ensuring a good profit for your business.
Exported to more than 20 countries around the world, and has agents and after-sales outlets locally
Make sure our machine works well and guarantee a life-time after-sale service.

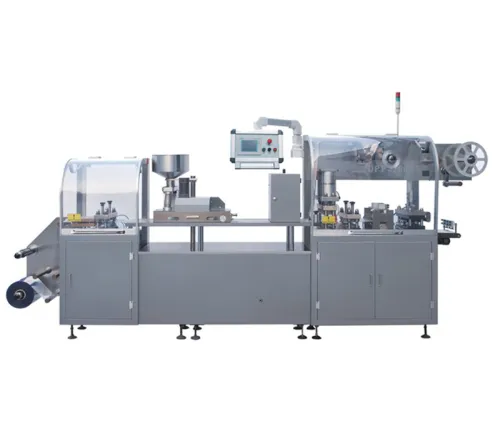

WENZHOU TRUSTAR MACHINERY TECHNOLOGY Co. ,LTD. is a scientific and technological machinery enterprise integrating R&D, production and sales.produced blister packaging machines, cartoning machine, Automatic Overwrapping Machine,tube filling machine. Trustar packaging machines are widely used in food, cosmetics, and pharmaceutical industries.
Based on their operation process, the blister packaging machine is divided into three distinct categories.These are :
The working rule of the flat forming blister packaging machine: The formed film is heated and softened by the flat heating device. The softened film is blown into a blister by using compressed gas within the flat forming device, and therefore the filling device fills the package into the blister.

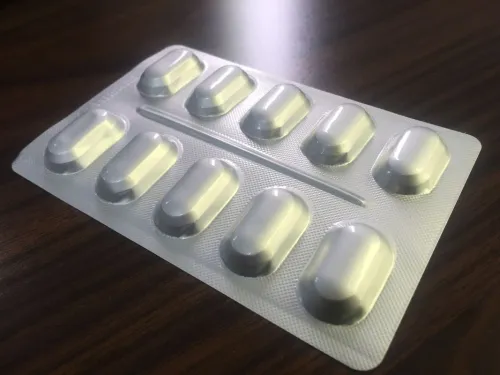

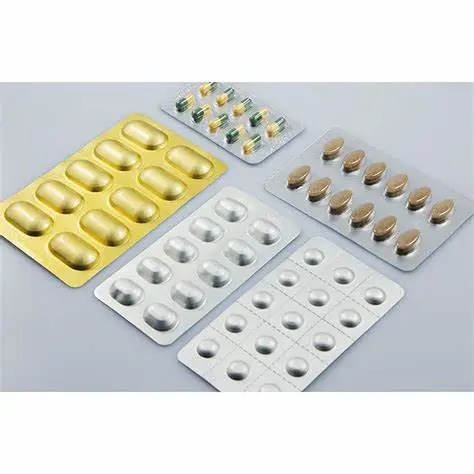

Blister packaging machine is a machine in which a transparent plastic film or sheet is formed into a blister, and the product is sealed between the blister and the bottom plate by heat sealing, bonding and other methods.
The roller plate type blister packaging machine is developed with the foundation of a roller type and flat type blister packaging machine. That is, a flat type molding device is employed for blow molding (positive pressure forming), and a roll type sealing device is sealed, and its blister packaging machine working principle is essentially the same.

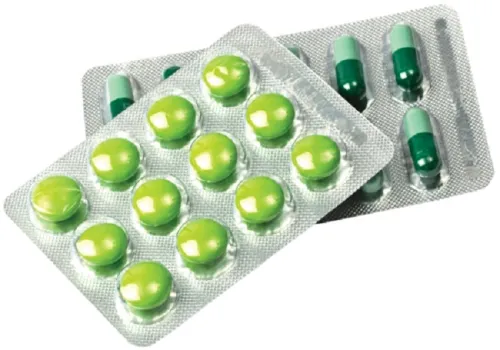

The blister packaging machine can effectively guarantee the safe packaging of the tablets from the tablet press or the capsules from the capsule filling machine. It plays an important role in the pharmaceutical, food processing and chemical industries.
This is mainly determined by the tools of the blister packaging machine, thermoformed or cold formed blister packaging machine, according to the production needs to replace the parts to achieve.

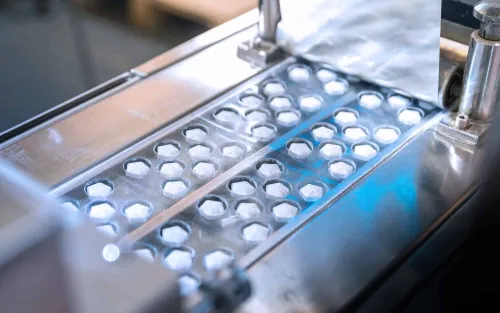

PVC base film web is drawn off from a reel and fed into the blister forming unit where blisters are continuously formed. The web is then led to the sealing unit over a guide track. Over the guide track, the product is filled into the blisters by suitable automatic filling unit before the web enters the sealing unit Aluminum foil is drawn off from a separate reel and is fed to the sealing unit where it is sealed with the base web, thus enclosing the product hermetically.
